Granite Cobble Stone Mesh Cobblestone Pavers

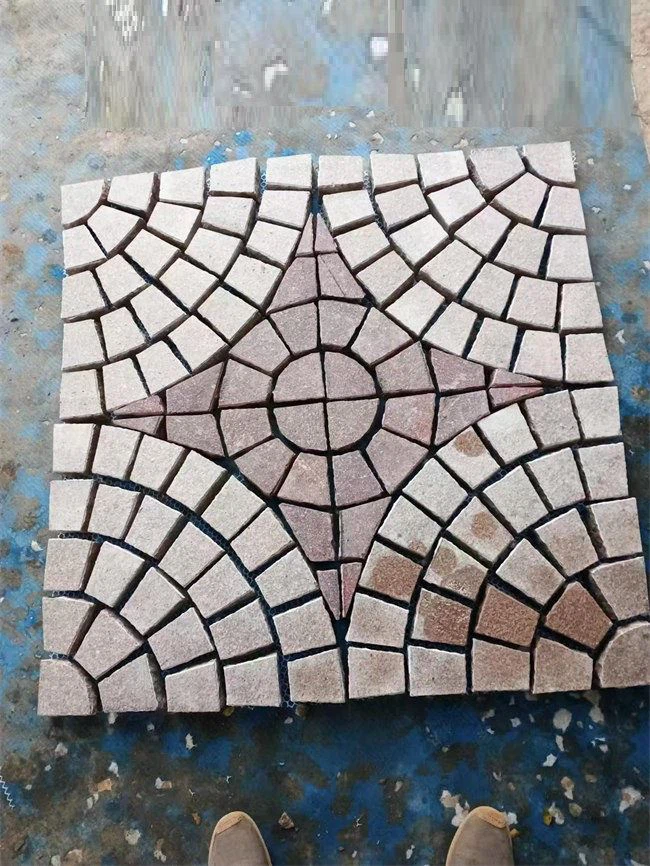

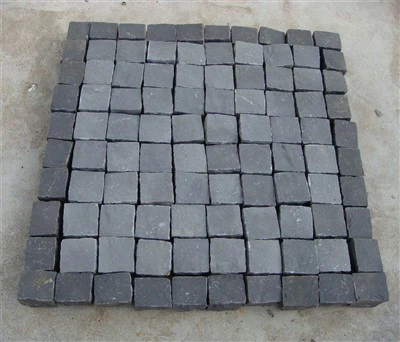

Granite Cobble Stone Mesh Pavers are pre-assembled paving units where individual granite cobblestones (typically 50–150mm wide) are uniformly spaced and bonded to a flexible polymer or fiberglass mesh backing. This system combines traditional aesthetics with modern installation efficiency. Below is a professional breakdown:

---

1. Composition & Structure

Cobblestones:

Natural granite blocks, flamed, split or tumbled for antique finish.

Sizes: 50×50mm to 100×100mm (2"×2" to 4"×4").

Thickness: 30–100mm

Mesh Backing:

UV-stabilized polypropylene or fiberglass grid.

Spacing: 10mm joints filled with sand/polymeric mix.

Binding: Epoxy or polyurethane adhesive securing cobbles to mesh.









---

2. Key Advantages

Feature	Traditional Loose Cobble	Mesh-Backed Cobble
Installation Time	8–10 hrs/m²	2–3 hrs/m² (60–70% faster)
Pattern Consistency	Manual alignment required	Pre-set uniform spacing
Stability	Prone to shifting	Interlocked grid resists movement
Labor Cost	High ($20–$30/sq.ft.)	Reduced ($12–$18/sq.ft.)
Weed Control	Joints vulnerable	Polymeric sand blocks weeds

---



3. Technical Specifications

Load Capacity:

Pedestrian: 50mm thickness

Vehicular: 80–100mm + compacted base (supports 30+ tons).

Durability:

Freeze-thaw resistant (passes EN 1341: 100 cycles).

Abrasion resistance: 18–22 mm (Böhme test, EN 14157).

Slip Resistance:

Tumbled/flamed surface: DIN 51130 R11–R12 (safe for wet areas).

---

4. Applications

Use Case	Recommended Thickness	Mesh Type
Walkways/Gardens	50–60mm	Polypropylene
Driveways	80–100mm	Fiberglass-reinforced
Plazas	70–80mm	Heavy-duty polymer
Historic Restoration	50–100mm (custom)	Biodegradable jute

---



5. Installation Protocol

Base Preparation:

Excavate 200–300mm; compact subsoil (95% Proctor density).

Add 150mm crushed aggregate (ASTM D2940).

Bedding Layer:

30–50mm coarse sand (graded per ASTM C33).

Paver Placement:

Unroll mesh units; cut edges with diamond blade.

Maintain 2–3mm gap between sheets.

Joint Filling:

Brush polymeric sand (e.g., Techniseal) into joints.

Activate with water for cementing effect.

---



6. Cost Analysis ( Not final one )

Component	Cost Range
Material	$8–$20/sq.ft. (varies by granite grade)
Mesh Backing	$1–$3/sq.ft.
Installation	$6–$12/sq.ft.
Total Installed	$15–$35/sq.ft.
*Note: 30–40% cheaper than hand-laid cobblestone.*

---



7. Limitations

Design Flexibility: Limited to grid patterns (cannot achieve complex curves).

Repairs: Damaged sections require full mesh unit replacement.

Transport: Mesh rolls weigh 50–80 kg (requires machinery for large projects).

---



8. Top Global Suppliers

Stonemart (India): Low-cost G20 granite cobbles on PP mesh.

Cobblecrete (USA): Fiberglass-reinforced units for heavy traffic.

Eurocobble (Portugal): Historic-style tumbled granite on jute mesh.

---

Professional Verdict

Granite mesh cobble pavers offer rapid, cost-effective installations while preserving authentic cobblestone charm. Ideal for driveways, heritage sites, and commercial plazas requiring <0.5% settling tolerance. Specify EN 1341-compliant units with UV-stable mesh. For heavy traffic, choose 100mm-thick cobbles on fiberglass grids with polymeric sand joints.
